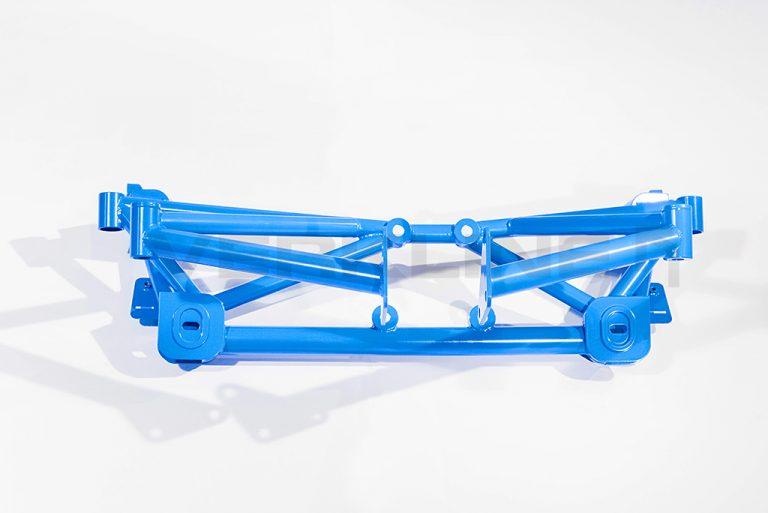

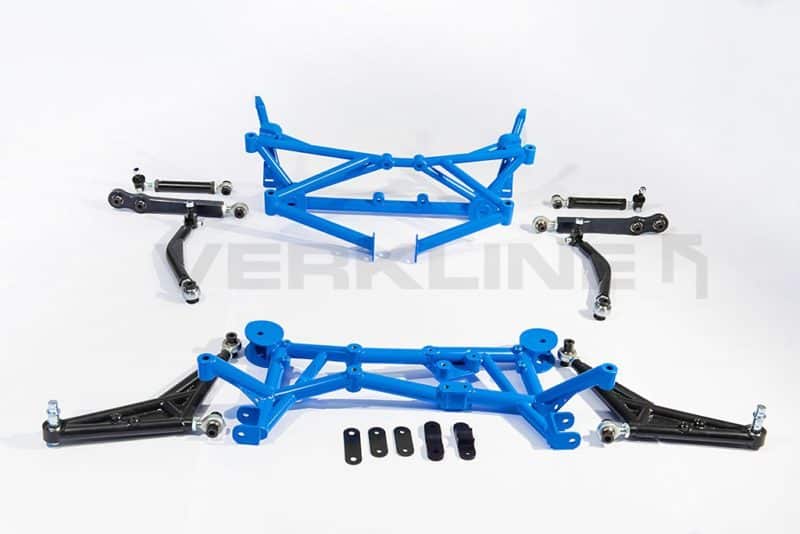

Verkline Mitsubishi Lancer EVO VII-IX Complete Lightweight Subrfame & Suspension Kit – WAS-900 Kit contains Front Light Weight Tubular Subframe for LHD cars. RHD version also available on request. Rear Light weight Tubular Subframe for RS rear axle Front Tubular Adjustable Arms with tilted pin for more suspension travel Adjustable Rear Camber Arms Adjustable Rear Toe Links Adjustable Rear Lowe Trailing Arms Technical details Mountings to the chassis using are on standard attachment points Full 3D CAD designed FEA Tested and additional reinforcement to the original design was made Manufactured fully from T45 tubing and S355 steel to the ultimate strength Rear Camber Arms Manufactured From 7075 Billet Aluminum, Anodized Black All pins made from C45 and Galvanized Silver Tig Welded Motorsport quality Rod Ends. Same as ones used in EVO X R4 kits by MML. Made in Europe, not in China Front and rear tubular subframes provide saving of 25 kg on the car over same OEM components Kit was developed in close co-operation with 7motorsport Evo dedicated motorsport company Notice: Front subframe is not compatible with Whiteline 26mm front anti-roll bar Image is for illustration purposes only Subframes and wishbones are powder coated in black Additional Information Brand Verkline
