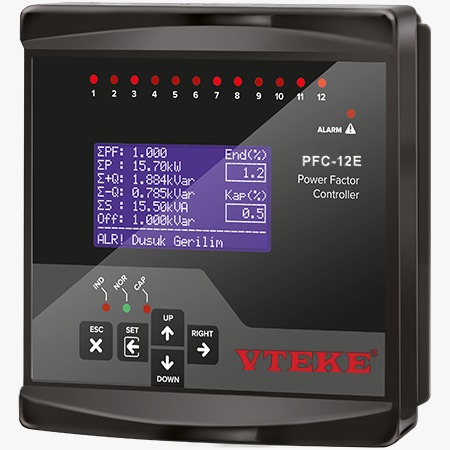

Generator Input and Generator Compensation Compensation for Inductive and Capacitive Systems Manual Step Value Enterable Single, Two and Three Phase Capacitor and Shunt Reactor can be connected Voltage, Harmonic Current/Voltage, Inductive and Capacitive Alarm Output Step Drive, Step Release, Discharge and Settlement Times are Adjustable Cosine/Power factor values of Each Phase Can Be Observed Step Drive, Step Release, Discharge and Settlement Times are Adjustable Capacitive/Active and Inductive/Active Ratios can be Observed Total Active and Reactive Energies (Import/Export/Inductive/Capacitive) can be Observed. THD-V and THD-I values of Each Phase can be Observed. Creating Power Analysis (20 samples 9999 min). It Shows The Total Number of Uses of the Steps. Encrypted Protection Same Aging in Steps Parameter Value Operating Voltage 100V- 300VAC Operating Frequency 50 / 60 Hz Operating Power <14VA, <15VA (18-step models) Operating Temperature -20°C…..55°C Storage Temperature -30 °C…. 88°C Voltage Measuring Range 5V – 300V AC Current Measuring Range 5mA – 5,5A Current Transformer Value 5/5A to 5000/5A Voltage, Current Accuracy %±0.5 Active Power Accuracy %±1 Reactive Power Accuracy %±2 Harmonic Voltage Measuring Range 3 – 31 Harmonic Current Measuring Range 3 – 31 Graphic LCD and LEDs Display 2.9″ (128×64) Connection Type Plug-in terminal connection Contacts 3A / 250V AC Resistive Load Generator Input Voltage 230V AC 50/60 Hz. (Un %0,8-1,1) Cable Diameter 1.5mm², 2.5mm² (Voltage Inputs) Weight <900Gr Operating Altitude <2000meters Protection Class IP41 (Front Panel), IP20 (Body) Panel Hole Sizes 140mm x 140mm
