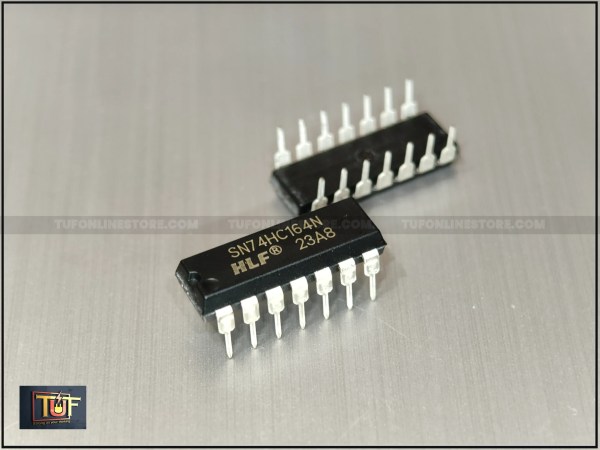

74HC164 DIP IC 8-Bit Serial In/Parallel out Shift Register IC (74164 IC) [ 10 Pieces Pack ]

74HC164 utilizes advanced silicon-gate CMOS technology. It has the high noise immunity and low consumption of standard CMOS integrated circuits. It also offers speeds comparable to low power Schottky devices. This 8-bit shift register has gated serial inputs and CLEAR. Each register bit is a D-type master/slave flip-flop. Inputs A & B permit complete control over the incoming data. A LOW at either or both inputs inhibits entry of new data and resets the first flip-flop to the low level at the next clock pulse. A high level on one input enables the other input which will then determine the state of the first flip-flop. Data at the serial inputs may be changed while the clock is HIGH or LOW, but only information meeting the setup and hold time requirements will be entered. Data is serially shifted in and out of the 8-bit register during the positive going transition of the clock pulse. Clear is independent of the clock and accomplished by a low level at the CLEAR input. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground. Features:- Typical operating frequency: 50 MHz Typical propagation delay: 19 ns (clock to Q) Wide operating supply voltage range: 2V to 6V Low input current: 1 µA maximum Low quiescent supply current: 80 µA maximum (74HC Series) Fanout of 10 LS-TTL loads Specifications:- Parameter Min Max Unit Supply Voltage (VCC) 2 6 V DC Input or Output Voltage (VIN, VOUT) 0 Vcc V Operating Temperature Range (TA) −4 -40 85 °C Input Rise or Fall Times VCC = 2.0V 1000 ns VCC = 4.5V 500 ns VCC = 6.0V 400 ns
