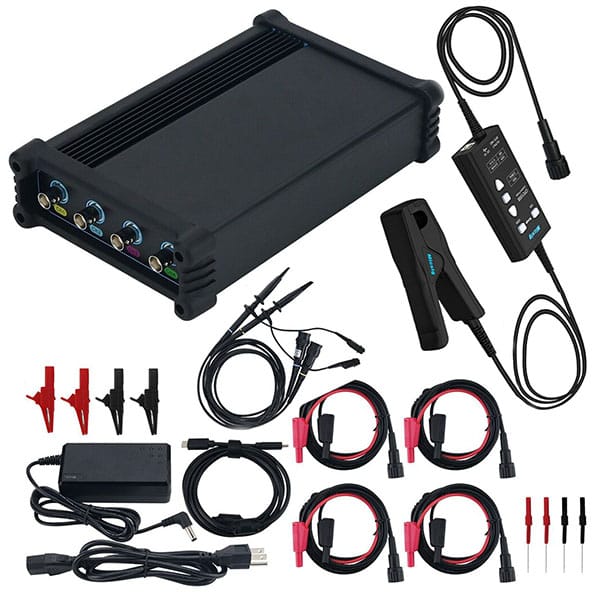

VATO2004 4 Channel 200Mhz Oscilloscope CP2100A Current Probe (Compatible with Launch X431/Autel/Xtool or Android tablet)

The Micsig VATO2004 Oscilloscope is a compact, portable oscilloscope with a 200MHz bandwidth, 4 channels, 1GS/s sampling rate and up to 50Mpts of memory depth. Compatible with any Android based professional diagnostic tablets like Launch X431, Autel, Xtool, Topdon it is specifically designed for automotive applications, the VATO2004 offers a comprehensive range of tests, including automotive charging/start circuits tests, sensor tests, actuator tests, ignitions, network tests, and combination tests This oscilloscope module doesn’t have a screen included but can be connected to any Android based Auto Diagnostic Tool or tablet with an Android OS via the provided USB type-C cable. Compatible with Launch X431, Autel, Thinkcar, Xtool, Topdon tablets or Android tablet with USB type-C port. The included CP2100A current probe can measure both DC and AC. It adopts split design, and uses a standard BNC interface and is suitable for a range of oscilloscopes. It can also be used for multimeters via the connector. The maximum current can be measured to 100Apk (70Arms), and can measure bandwidth to DC 800KHz; 2 optional measuring ranges: 10A and 100A. Automatic and manual zero adjustment, powered by USB, making measurement more convenient. VATO2004 Oscilloscope Specifications Bandwidth 200 MHz Channels 4 Memory depth 50 Mpts (divided by number of active channels) Sample rate 1 GS/s (divided by number of active channels) Waveform capture rate 130.000 wfm/s Vertical resolution 8 bits Vertical scale 5 mV/div – 10 V/div Horizontal scale 5 ns/div – 1 ks/div Interfaces USB Type-C Decoding CAN, LIN Dimensions 140 x 215 x 52 mm Weight 640 g CP2100A Current Clamp for VATO2004 Oscilloscope Specifications Bandwidth DC ~ 800 KHz Rise time < 583 ns Range 50 mA ~ 10 Apk (10A) 1A ~ 100 Apk (100A) Signal delay < 150 ns (10A) < 200 ns (100A) Overload indication Yes Power supply 5 V Dimensions (without package) 110 x 60 x 25 mm Weight (without package) 290 grams Accessories This VATO2004 Oscilloscope Set comes by default with:  VAT2004 Oscilloscope (screen not provided)  2x Passive BNC probes  4x BNC to banana cable  4x Alligator clips  4x Pin needle  1x Power cable  1x Power adapter  1x USB Type-C cable SP2100A Current Probe Clamp.
