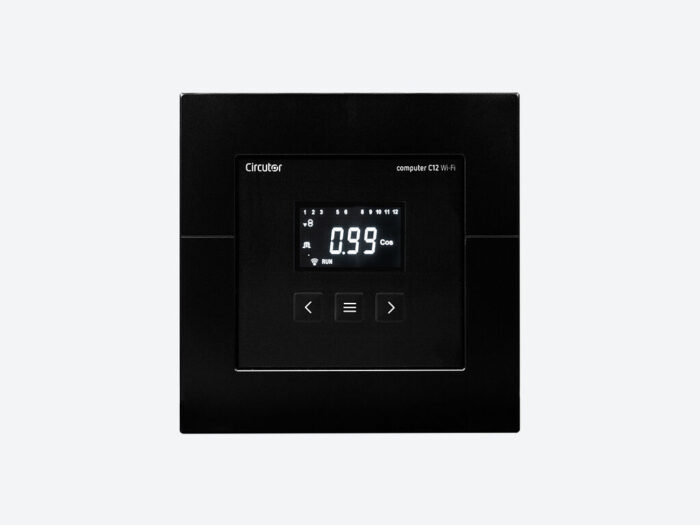

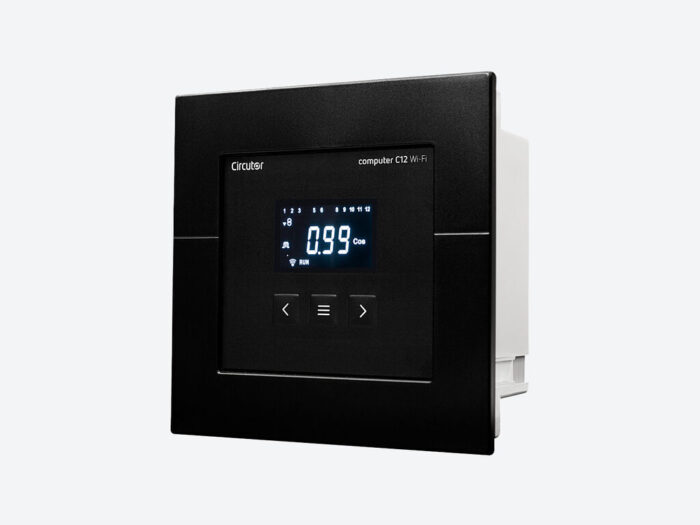

The Computer C Wi-Fi series of regulators is designed for simple and effective regulation. Its high-contrast display can show up to 27 electrical parameters. Its features are key to having a robust and reliable system, as well as to obtaining the necessary warnings and alarms for its proper monitoring and control: Up to 12 fully configurable alarms. Electrical parameters viewable online via Wi-Fi connectivity. Plug & Play. For easier preventive maintenance Applications The Computer C Wi-Fi is the ideal regulator to compensate balanced installations, where ease of programming, robustness, precision, and maximum compensation control are required. Its simple and intuitive programming system facilitates user installation and maintenance. SPECIFICATIONS AC power supply Nominal voltage 400 V ~ (±10 %) Frequency 50 … 60 Hz Consumption 13 VA Installation category CAT III 300 V Current measurement circuit Nominal current (In) … / 5 A Phase current measuring range 0.05 … 5A Connection Connect preferably to phase L1 Permanent overload 20% Measurement accuracy Phase voltage measurement 1% Phase current measurement 1% Phase angle φ 2 % ± 1 digit Digital relay outputs Quantity 12 1 (Alarm) Maximum open contact voltage 250 V~ Maximum current 1 A~ Electrical life (at maximum load) 1×105 cycles Mechanical life 1×107 cycles Maximum switching capacity 250 W Wireless communication Technology / Type Wi-Fi Band 2,4 GHz (IEEE 802.11 b / g , IEEE 802.11 n (up 150 Mbps) User interface Resolution of the display 3 digits Keyboard 3 keys Environmental characteristics Working temperature -20 … 60 ºC Storage temperature -20 … 70 ºC Relative humidity (without condensation) 5 … 95 % Protection class IP 30 / Front Panel: IP 40 IK 08 Mechanical characteristics Envelope Plastic V0 self-extinguishing Fastening Panel Weight (kg) 0,5 Size (mm) width x height x depth 144 x 144 x 54.85 (mm) Standards Standards IEC 61010, IEC 61000-2-30, IEC 61000-6-4, IEC 61000-6-2 Electrical safety, Contamination level/class Pollution resistance 2 Electrical safety, Maximum height (m) 2000 Electrical safety Insulation Double-insulated electric shock protection class II (IEC 61010-1) DIMENSIONS CONNECTIONS
