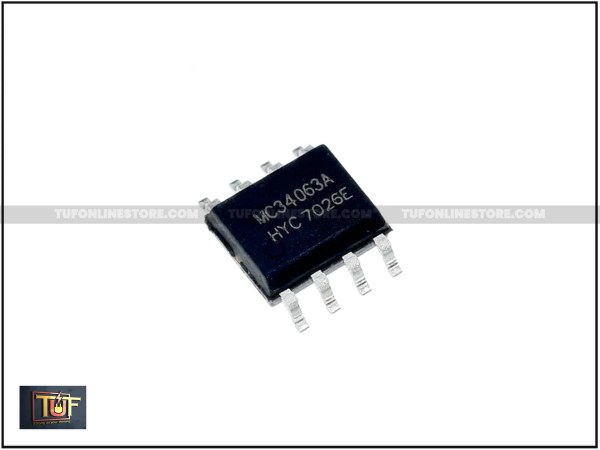

MC34063A IC SMD Inverting Regulator [ 5 Pieces Pack ]

MC34063 IC SMD Inverting Regulator. The MC34063A Series is a monolithic control circuit containing the primary functions required for DC−to−DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step−Down and Step−Up and Voltage−Inverting applications with a minimum number of external components. Refer to Application Notes AN920A/D and AN954/D for additional design information. Features: Operation from 3.0 V to 40 V Input Low Standby Current Current Limiting Output Switch Current to 1.5 A Output Voltage Adjustable Frequency Operation to 100 kHz Precision 2% Reference NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS MAXIMUM RATINGS: Power Supply Voltage VCC 40 Vdc Comparator Input Voltage Range VIR −0.3 to 40 Vdc Switch Collector Voltage VC(switch) 40 Vdc Switch Collector to Emitter Voltage VCE(switch) 40 Vdc Driver Collector Voltage VC(driver) 40 Vdc Driver Collector Current (Note 1) IC(driver) 100 mA Switch Current ISW 1.5 A TA = 25°C PD 625 mW Plastic Package, P, P1 Suffix Operating Junction Temperature TJ 150 °C
