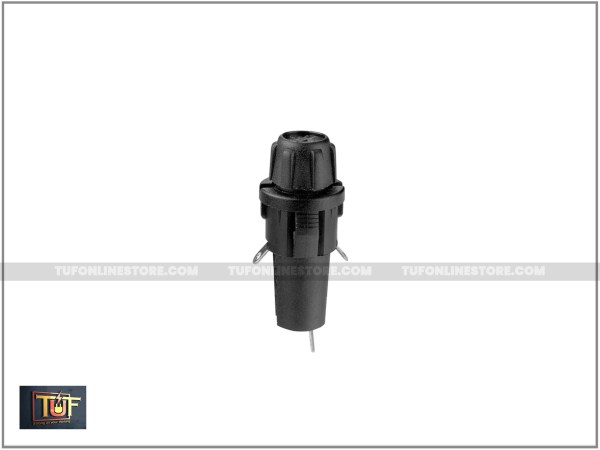

Fuse Holder FH-6 S BB Original [ Push Fit ] [ 25 Pieces Pack ]
$44.54
$68.15
1.Mounting style: Panel, Screw up. 2. Permissible Temp.with/Without load: 0°C to 85°C 3.Permissible Temp. for Soldering: 270° for 5 seconds max. 4. Panel Thickess(Max.): 3mm max. 5. Material: Polyamide. 6. Insulation Resistance: 1000 M Ohms min. 7. H.V. Break Down: 2KV/AC For 1 Minute. 8. Current Carrying Parts: Brass,Tin Plated. 9. Contact Resistance(Initial): 10 m Ohms max. 10. Cap Design: Screw-In with coin slot. 11. App.Weight(gm): 9.5 12. Fuse Link Size: 6.3×32 mm. 13. Rated Current/Voltage: 10 Amps/250V AC. 14. Terminals: Solder type. Uses: Fuse holder are mostly used in following Applications: Power Supplies, Stabilizers, UPS & inverter, Solar lanterns, Water Purifier, Power Controller, Bed side Monitor, De – fabricators, e-bike, medical instrument, Amplifiers etc.
